Configurator SLS-Grip RH
Edge radius left - Rl
the edge radius on the left edge largely defines the feel of the grip. The smaller the radius, the more the edge is felt in the palm. It forms a distinctive point that serves to orientate the hand. If the radius is larger, the comfort of the grip increases and the hand fits in more easily.

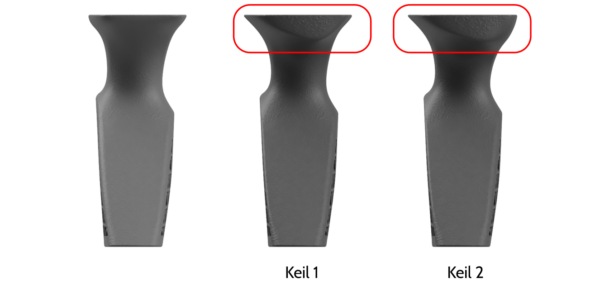

wedge
The wedge at the top of the handle provides additional support for positioning in the grip. For wedge 1, the contour lines in the upper area of the grip scale are merged into a triangle. For wedge 2, the thickening is enlarged in the right area, which makes the wedge stand out even more.

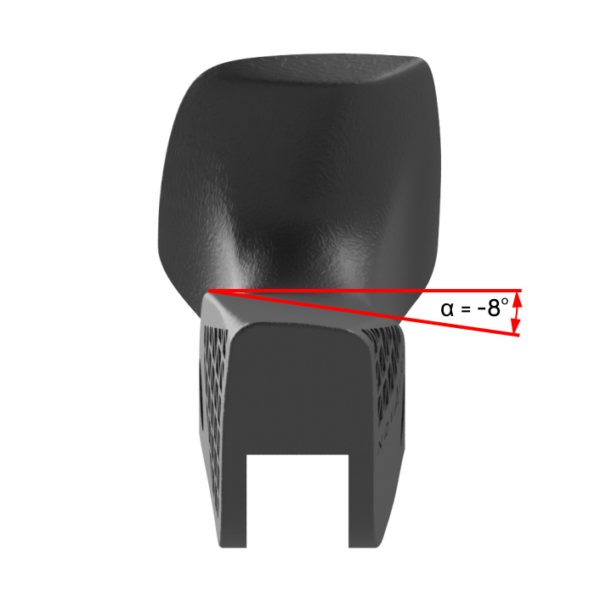

α Angle of the contact surface
With a negative inclination of the contact surface, a firm seat in the grip can be promoted, since the hand is pulled deeper into the grip. However, the risk of jamming the sheet by exerting too much pressure on the left edge also increases.
Free geometry
The outer geometry can be completely freely configured with six parameters and thus perfectly adapted to you.
Anti-slip hex structure
A hexagonal honeycomb pattern can be embedded in the contact surface for additional slip resistance.
β angle of attack (height)
The angle of attack of the grip determines the basic position of the hand. In addition, the height of the pressure point is influenced by the angle of attack.
Configurator SLS-Grip RH
129,99 €
incl. VAT plus shipping costs
Attention: You are in the right-hand configurator. You can access the left-hand version here.
